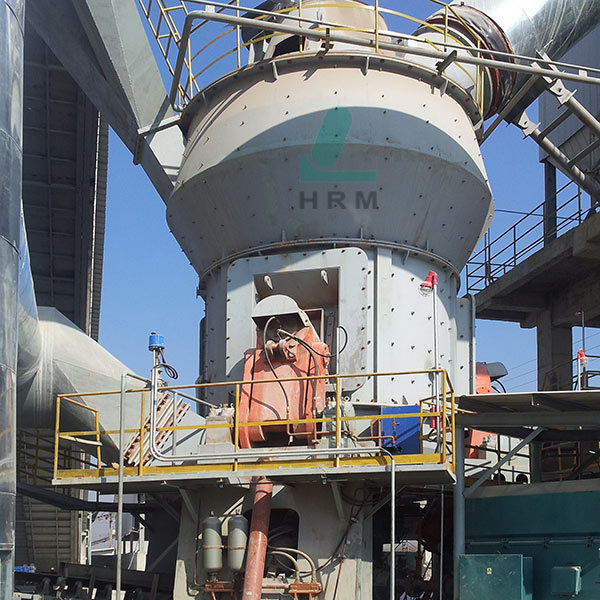

HRM Coal Vertical Mill
Category:
Product Description
HRM coal vertical grinding mill,HRM coal mill vertikal,HRM 3400 vertical mill - Crusher Manufacturer,HRM coal vertical grinding mill india
Model HRM is national design.
Model HRM is national produced vertical mill by introducing German technology of Krupp Polysius Company.China HRM2800s Vertical Mill, Find details about China Vertical Mill, Grinding Mill from HRM2800s Vertical Mill
HRM Vertical Mill,Vertical Mill,Vertical Roller Mill,Introduction , HRM Vertical Mill applies to grind coal, coke, cement raw material, gypsum, barite, phosphorite etc.
cement factory plant cost – HRM Grinding Mill China
» HRM coal vertical grinding mill ... cement factory plant cost and cement factory plant for sell Time:2015-01 ... 50tpd cement plant cost in india – - HRM Coal mill
Technical Parameters
Model |
HRM16/2M |
HRM17/2M |
HRM19/2M |
HRM21/2M |
HRM24/2M |
HRM28/2M |
HRM29/3M |
HRM34/3M |
HRM42/4M |
Grinding disc diameter (mm) |
1300 |
1300 |
1500 |
1700 |
1900 |
2200 |
2400 |
2800 |
3400 |
Yield (t/h) |
10~15 |
10~15 |
14~22 |
20~28 |
26~35 |
35~45 |
40~50 |
55~70 |
80~100 |
Raw coal moisture(%) |
<15 |
||||||||
Pulverized coal fineness(%) |
R0.08=1~12(80Micron sieve) |
||||||||
Pulverized coal moisture(%) |
≤1 |
||||||||
main motor power (kW) |
110/1132 |
160/185 |
220/250 |
315/355 |
400/450 |
450/500 |
560/630 |
900/1000 |
1250/1400 |
HRM Vertical Raw Mill,
Model HRM Vertical Mill - Buy Vertical Raw Mill ,
HRM Vertical Mill, Find Complete Details about Vertical Raw Mill from Other Construction Machinery Supplier or Manufacturer
HRM1900,HRM2400,HRM2800,HRM,3400,HRM3700,HRM2200,HRM1250,HRM1100,HRM24-28,HRM3400E,HRM1700M,HRM1300M,HRM1500M,HRM1700X,HRM3700E,HRM4200,HRM29.3M,HRM22/3,HRM34.3M,HRM27-29,HRM34.3.
It is a national high-tech enterprise and provincial innovative (pilot) enterprise, reinforced with several R&D organizations such as provincial enterprise technology center, Hefei Engineering Technology Research Center etc. And a good number of technical achievements of the company are at the international advanced level. Furthermore, it has won the second prize of the national science and technology progress for two times, provincial and ministerial science and technology progress award for 10 times, and various industry, group and local science and technology awards for numerous times.
Key words:
LATEST NEWS
Thank You for Your Attention to ZhongYa!
Send us your needs for your business, we have professional service team to answer you !
EP Service

External circulating system (basically used for cement raw meal final grinding and clinker semi-final grinding)
Adopt external circulating elevator for material. circulation, reduce the system air pressure, significantly reduce energy consumption of the syetem .

Single stage dust collecting system 1
The dust collecting device is adopted with explosion-proof bag filter and the discharge air enters into dust collector directly. This system reduces installation of numbers of equipments simplifies system configuration.

Single stage dust collecting system 2
The dust collecting device can be adopted with a high concentration. EP or bag filter, the discharging air enters directly into the dust collector. This system reduces the number of equipment and simplifies the system configuration.

2nd stage dust collecting system
Cyclone dust collector is adopted for collecting product. This arrangement is helpful to reduce the system's negative working pressure and air volume passing through the dust collector. EP or bag filter can be used as final dust collecting equipment..
